Our standard width range is pre-engineered — no additional engineering fee and faster lead times. These sizes cover the majority of projects. Custom widths, depths, and configurations are available on request and are a routine part of our work.
Standard
Popular for tight sites
Most popular
Council standard
Wider coverage
High-volume stops
Large-format
Centre post on open-front types
Our standard configurations are the starting point for most projects — not the limit. They cover the most common site requirements and benefit from pre-engineered designs, which means faster lead times and no extra engineering cost.
Where a standard configuration doesn't suit your site, we design to brief. Custom widths, depths, configurations, and cladding combinations are all straightforward for us. Most of our larger projects involve at least some degree of customisation.

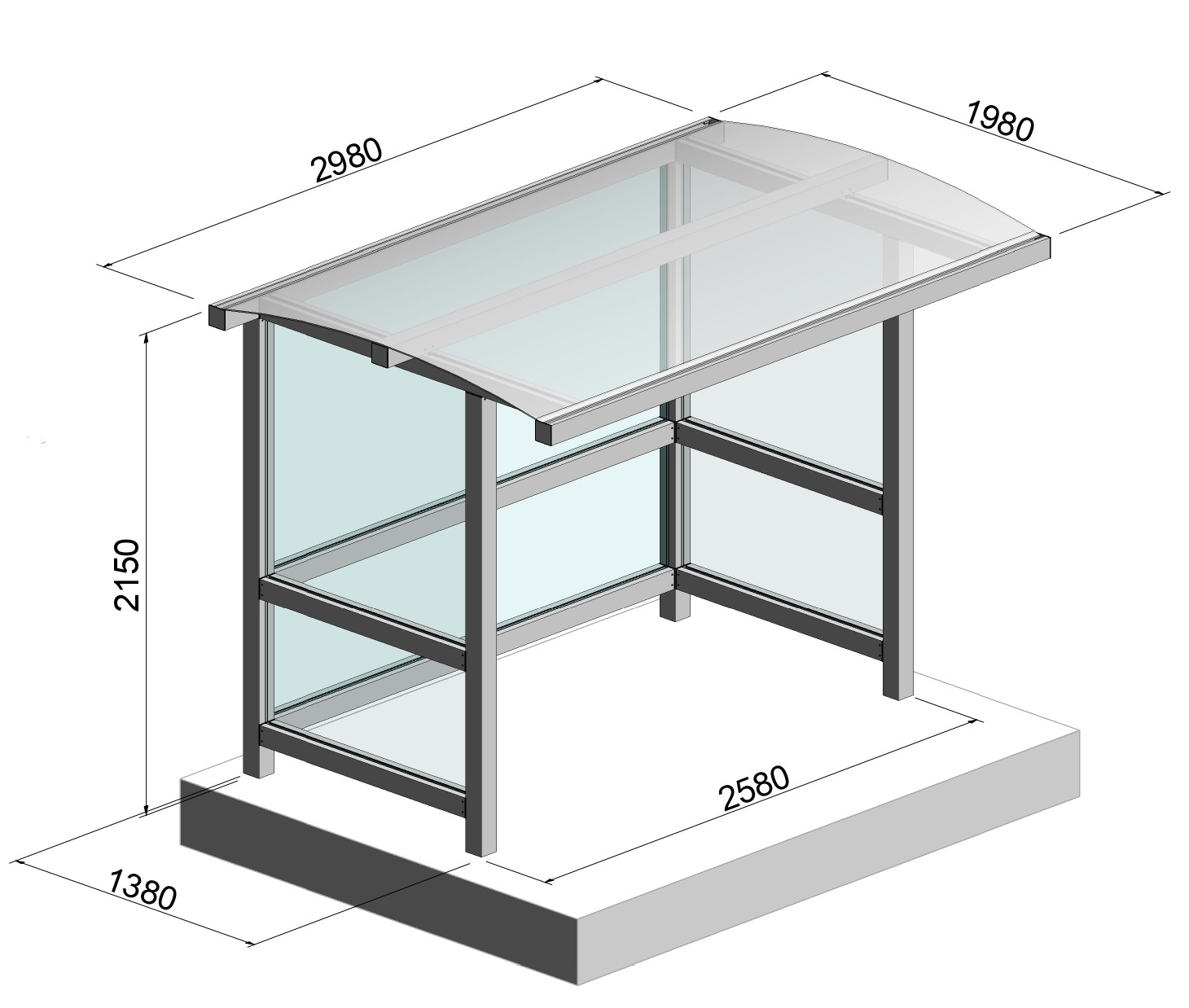

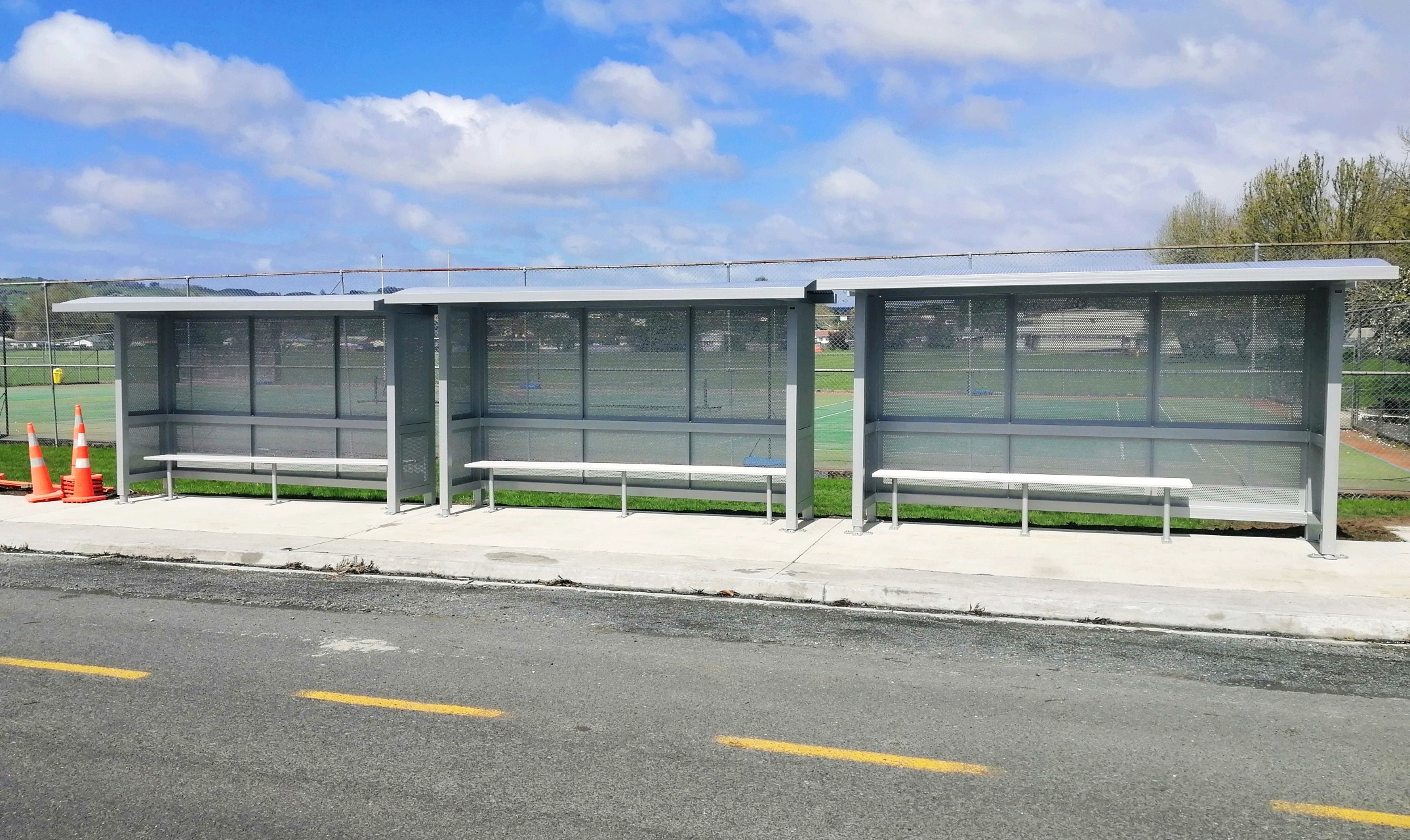

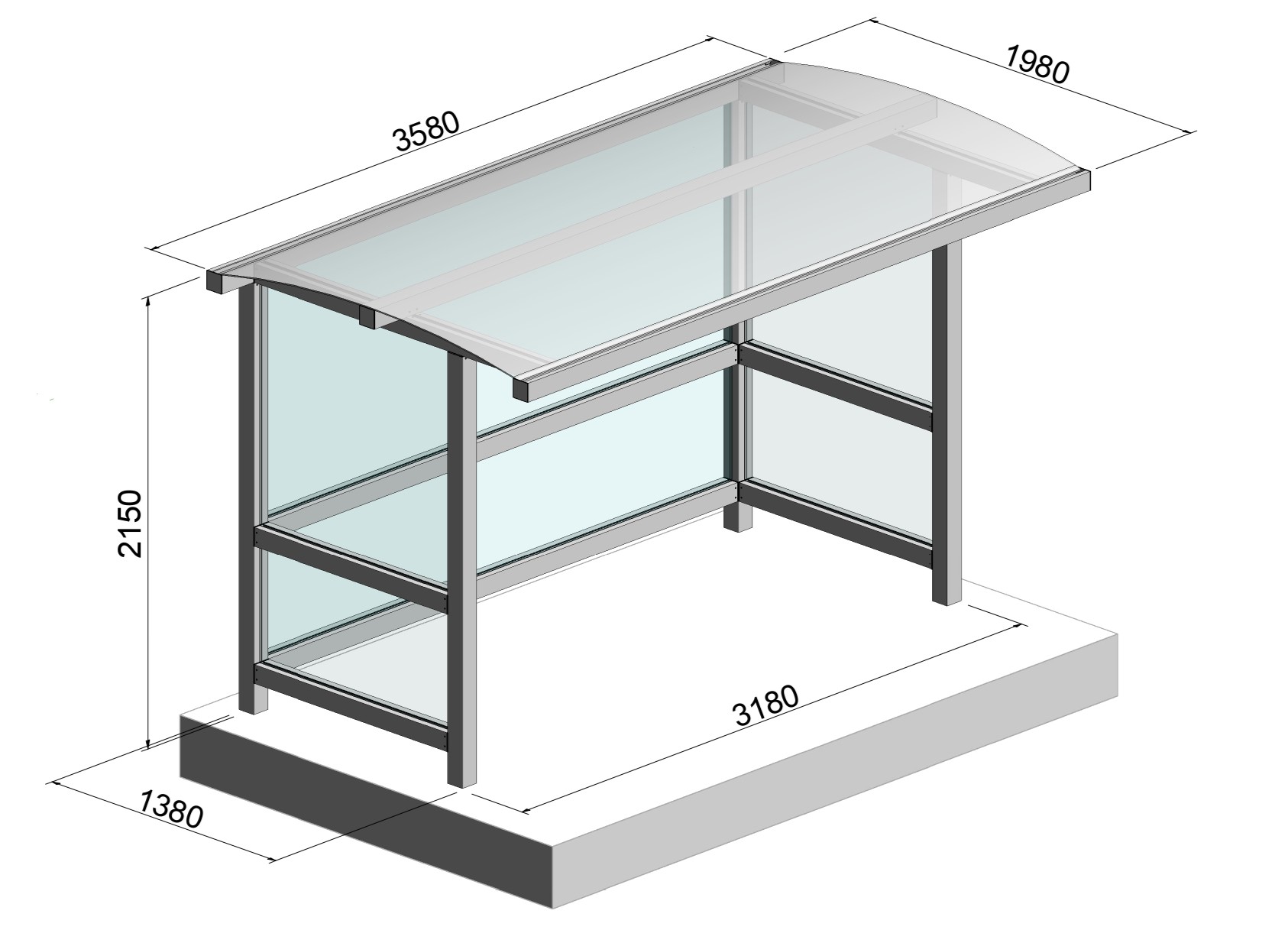

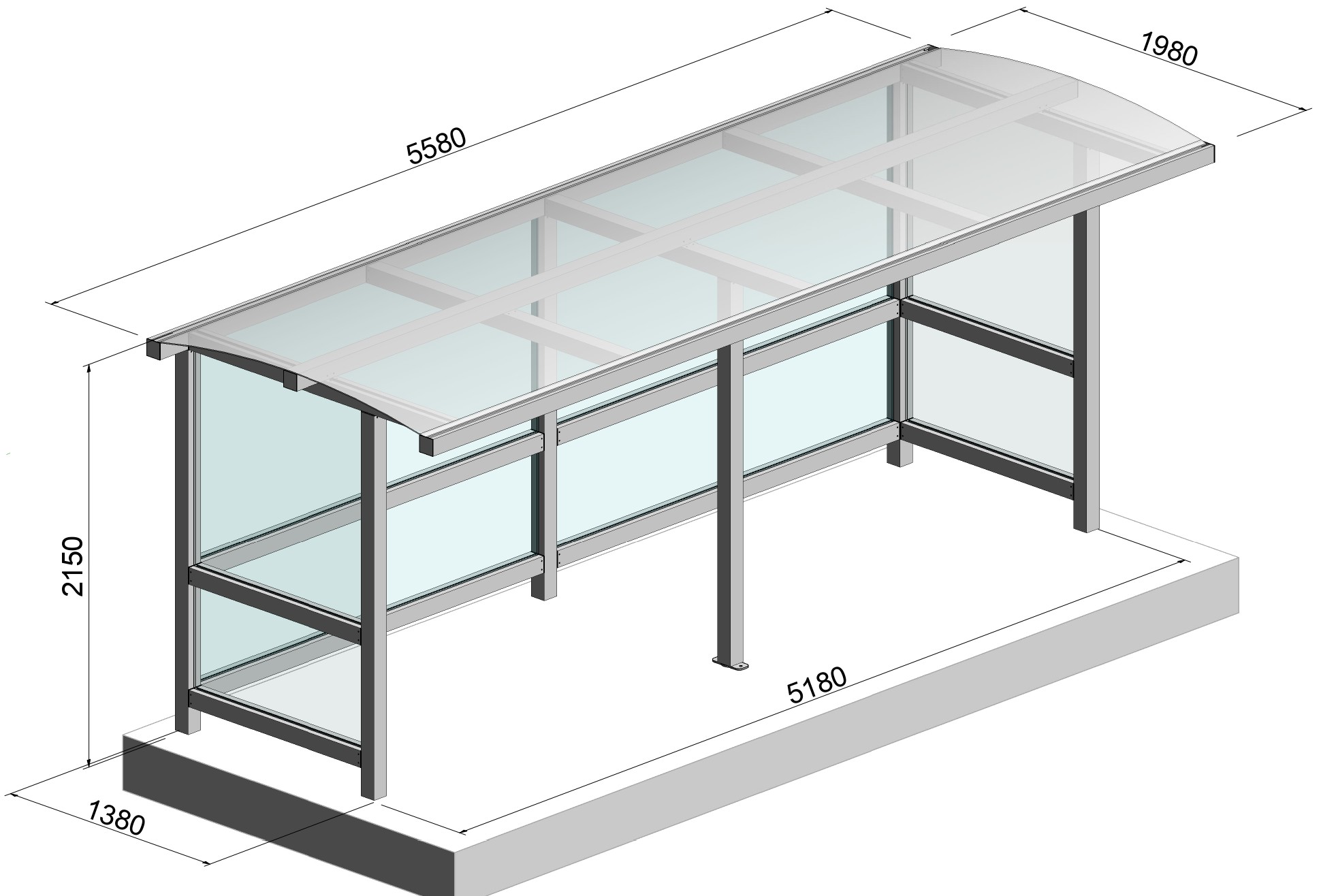

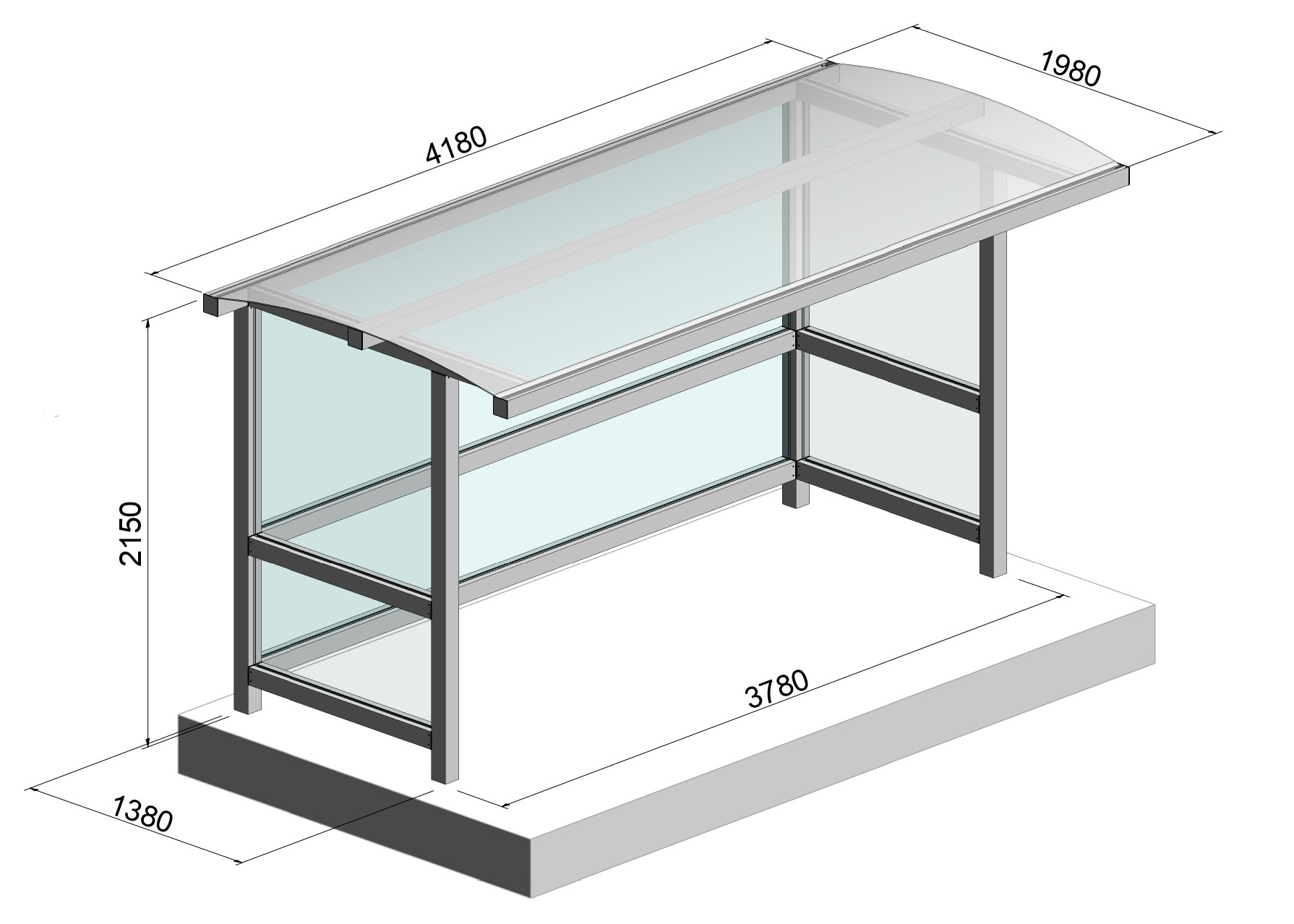

The Overhung has the standard 1.2m platform of the Open Front, with an additional 600mm roof overhang beyond the front posts. Total roof depth is 1.8m — significantly more weather protection than the standard types without changing the platform footprint. Best suited to exposed sites, high-rainfall areas, or anywhere maximum overhead coverage is the priority. Open front face. Centre front post required at 5m width.
-p-800.png)
.png)
.png)

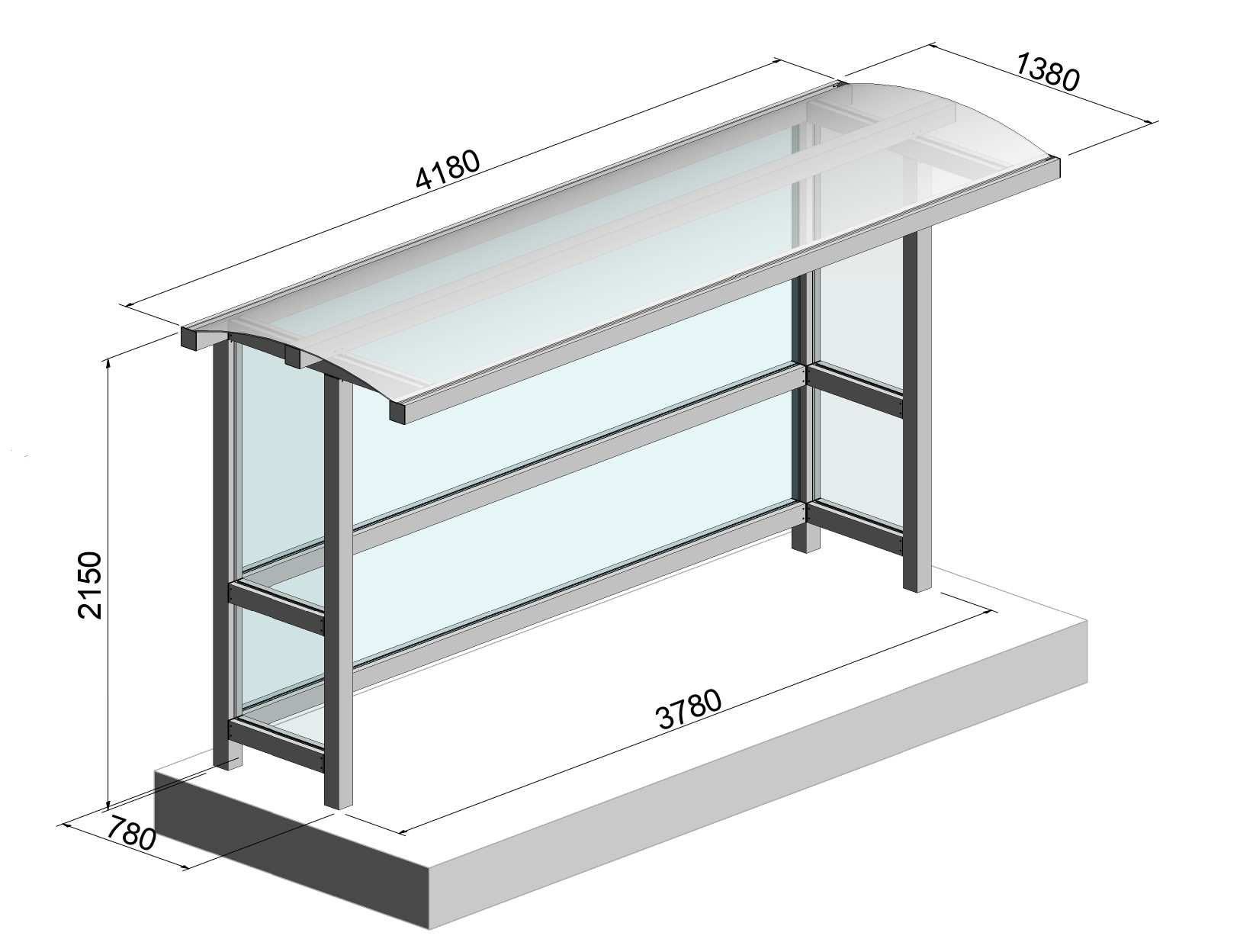

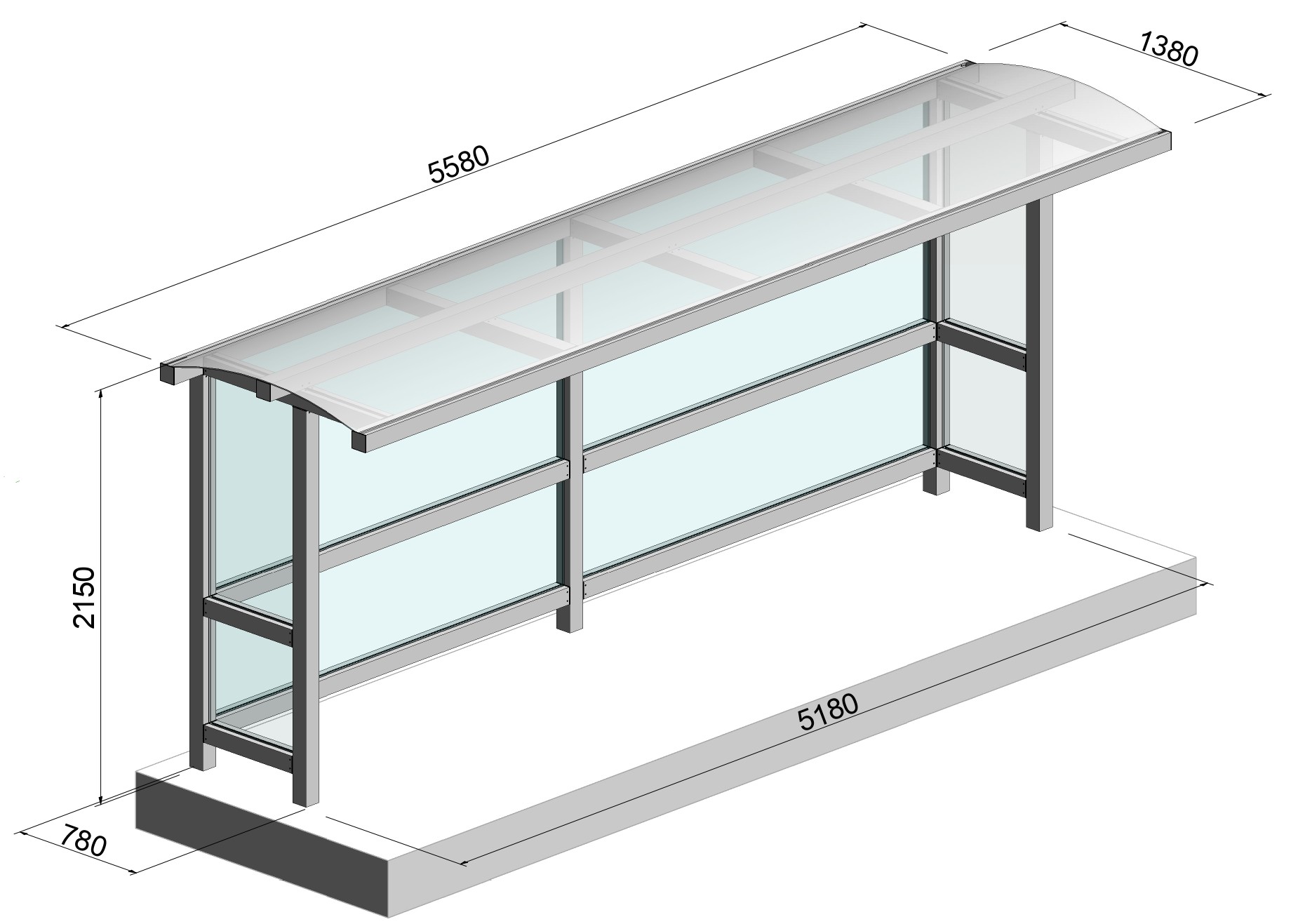

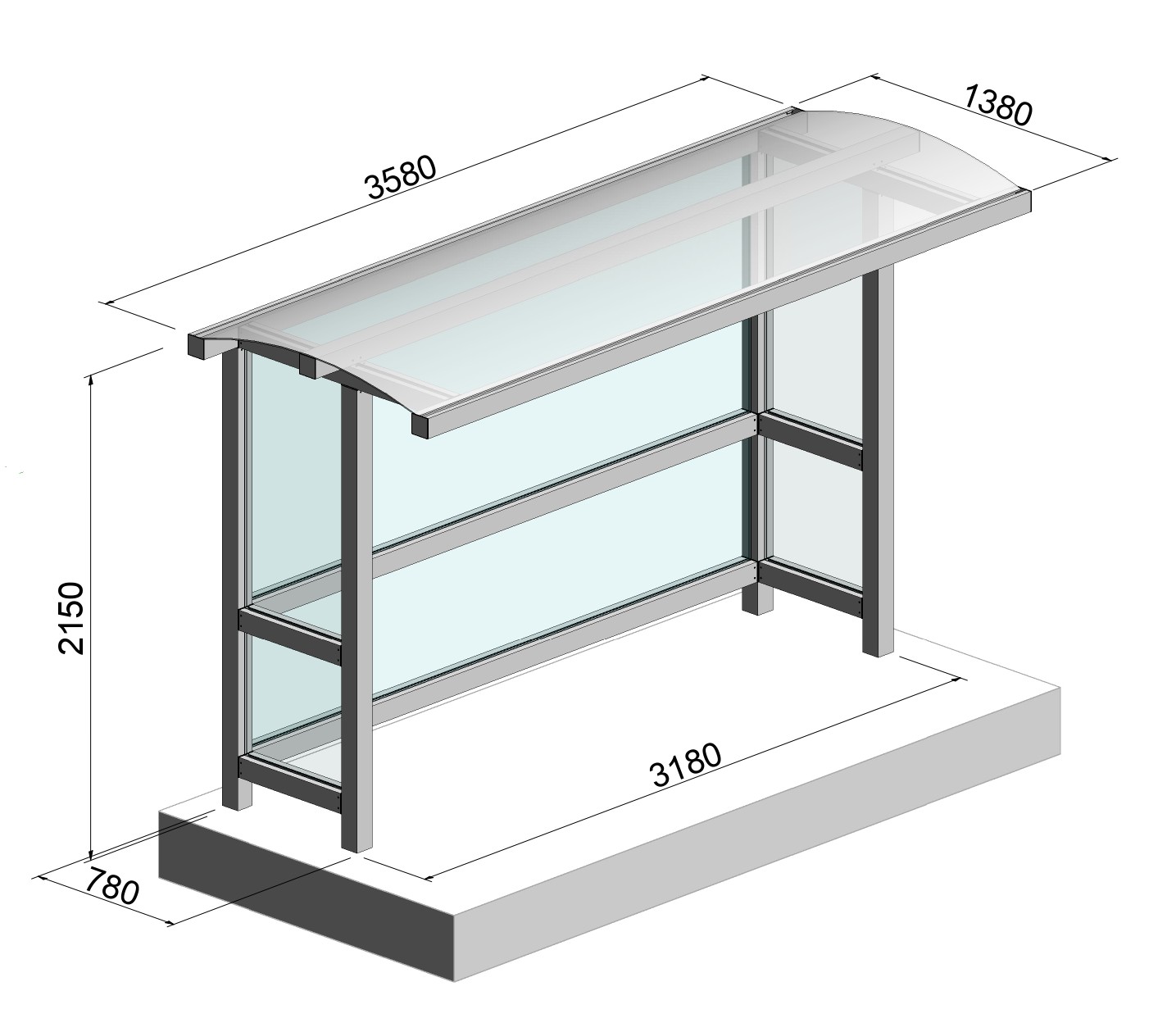

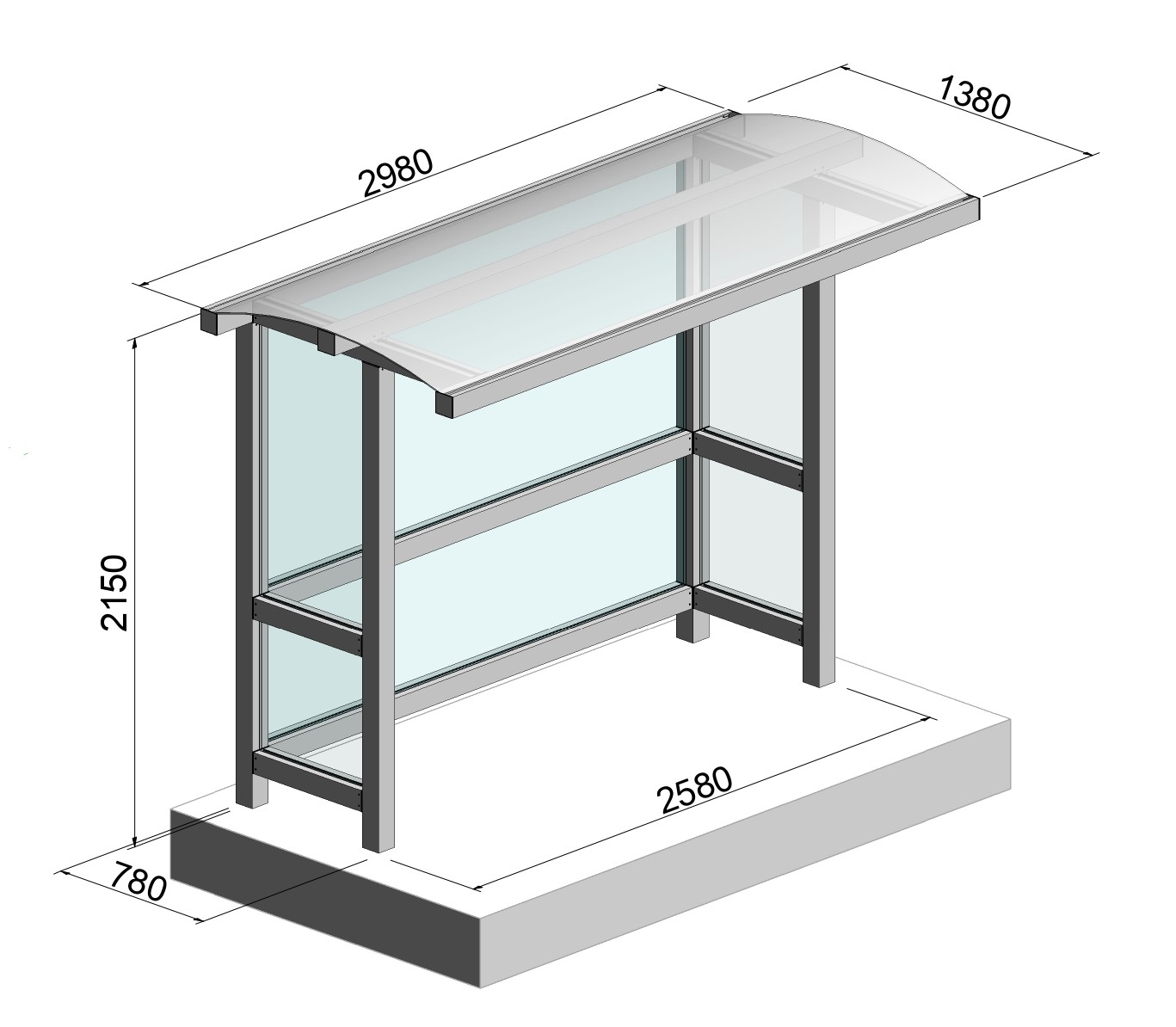

The Slimline delivers the same total shelter coverage as the Open Front — 1.2m — but with half the physical footprint. A 600mm platform plus a 600mm roof overhang creates effective 1.2m deep cover while only occupying 600mm of ground space. The right choice for narrow footpaths, tight urban sites, or anywhere a full-depth platform would restrict pedestrian movement. Cladding on the three enclosed sides runs full height to ground, the same as all other types. Centre front post required at 5m width.
.png)

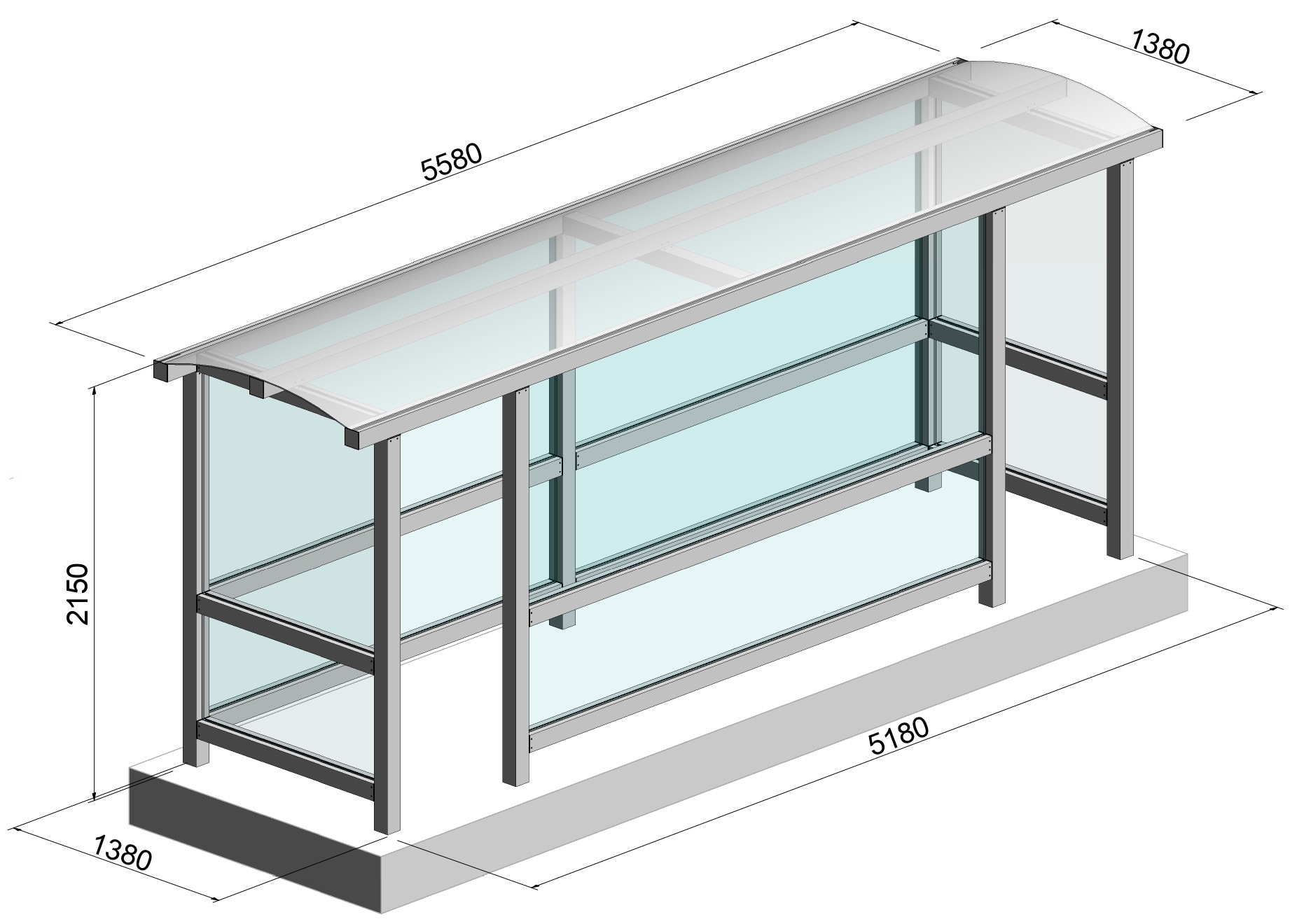

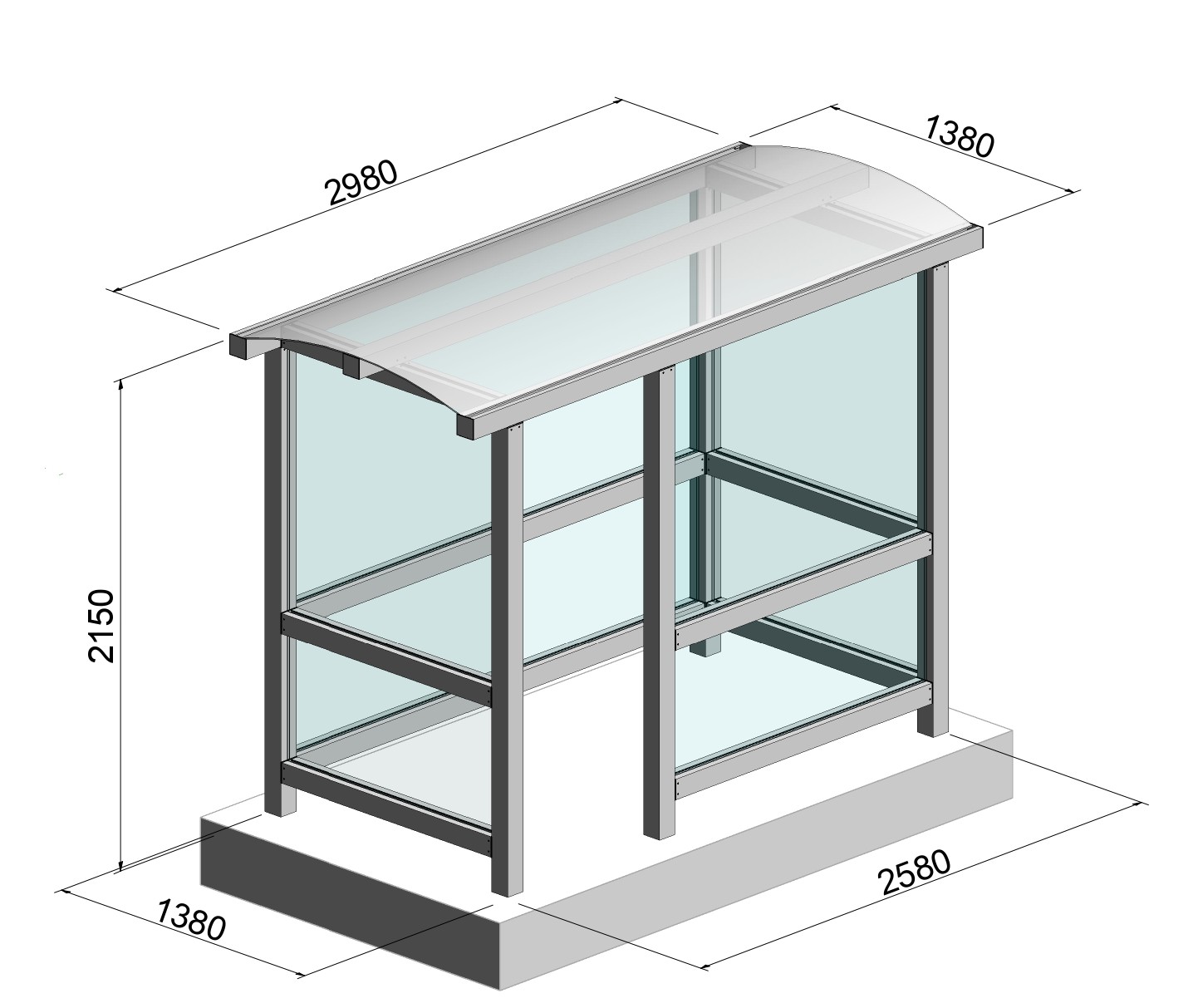

The Typical has the same 1.2m platform as the Open Front, but with a partially enclosed front face. Openings of 800mm are provided at one or both ends of the front, with the rest of the front enclosed with cladding. The 2.4m has a single opening on one side. The 3m, 3.6m and 5m have two openings — one at each end — with an enclosed centre section. Ideal where maximum weather protection from all sides is needed, such as exposed coastal or rural sites.
.png)
.png)

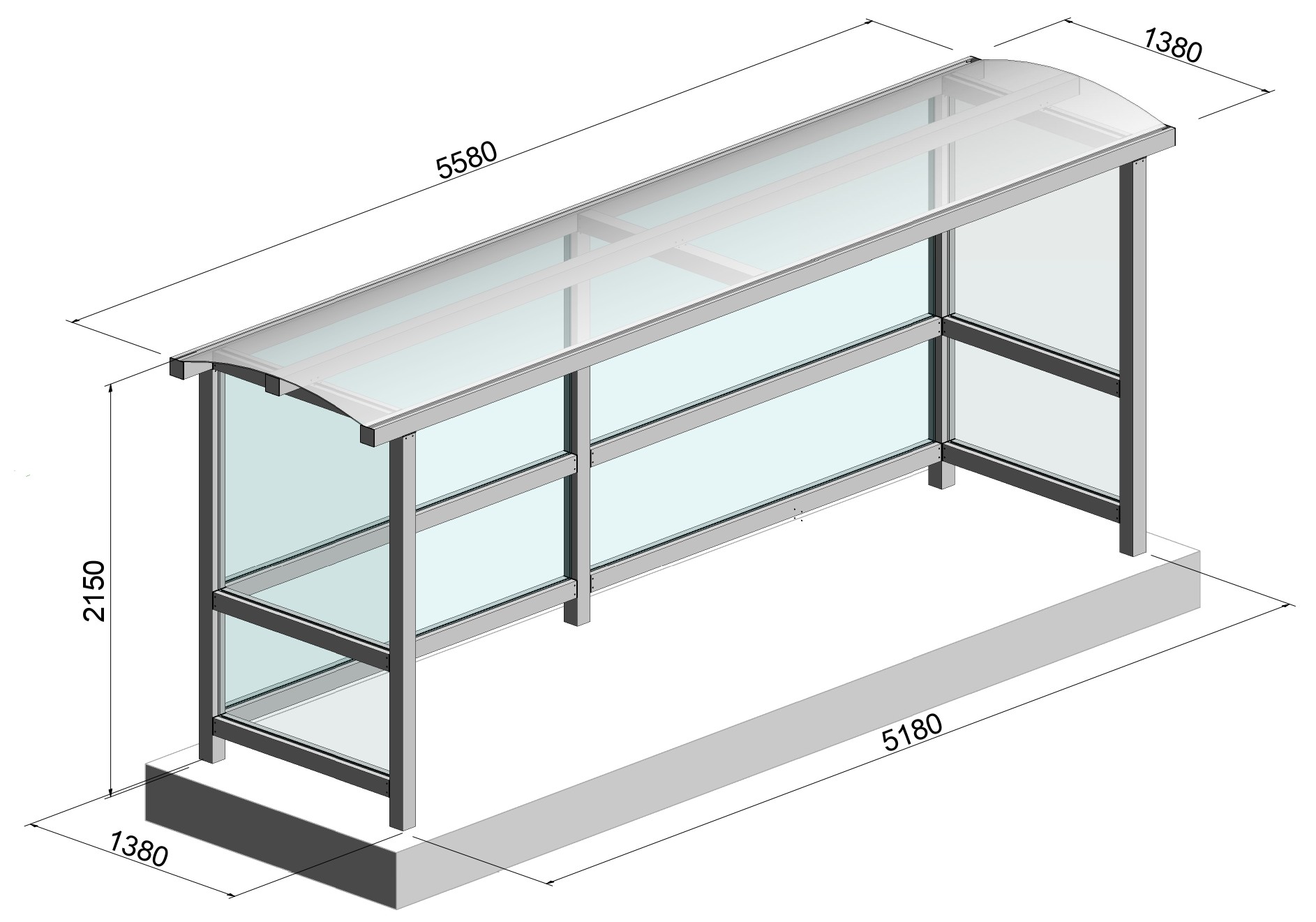

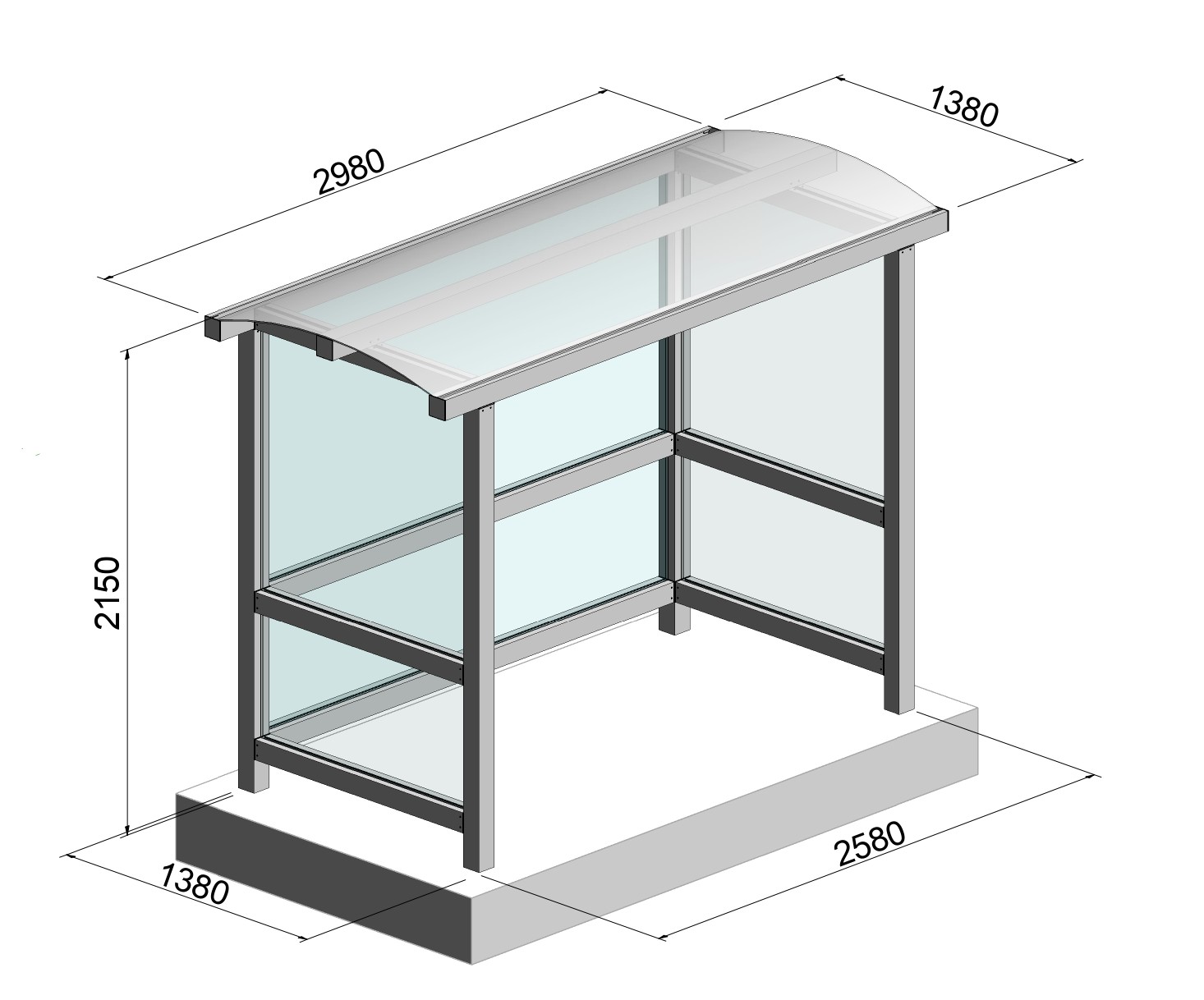

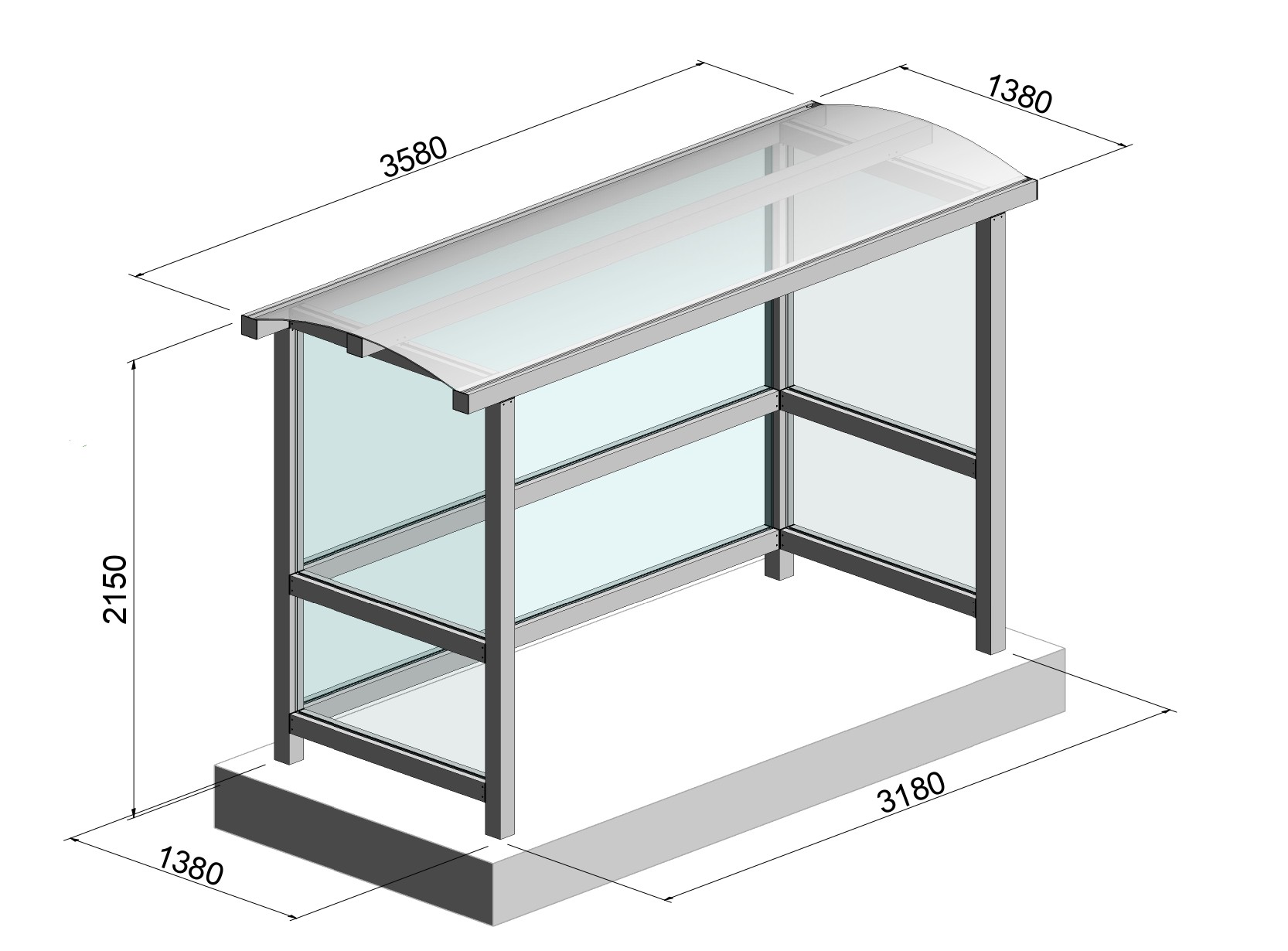

Our most widely specified shelter. The Open Front is enclosed on three sides — rear and both ends — with a completely open front face. Maximum accessibility, good ventilation, and clear sight lines from inside the shelter. At 5m width, a single structural centre post is required at the front to support the roof span. It is structural only — no cladding on either side of it.
All four shelter types are available with any of the three cladding options. The right choice depends on your site and maintenance expectations.
